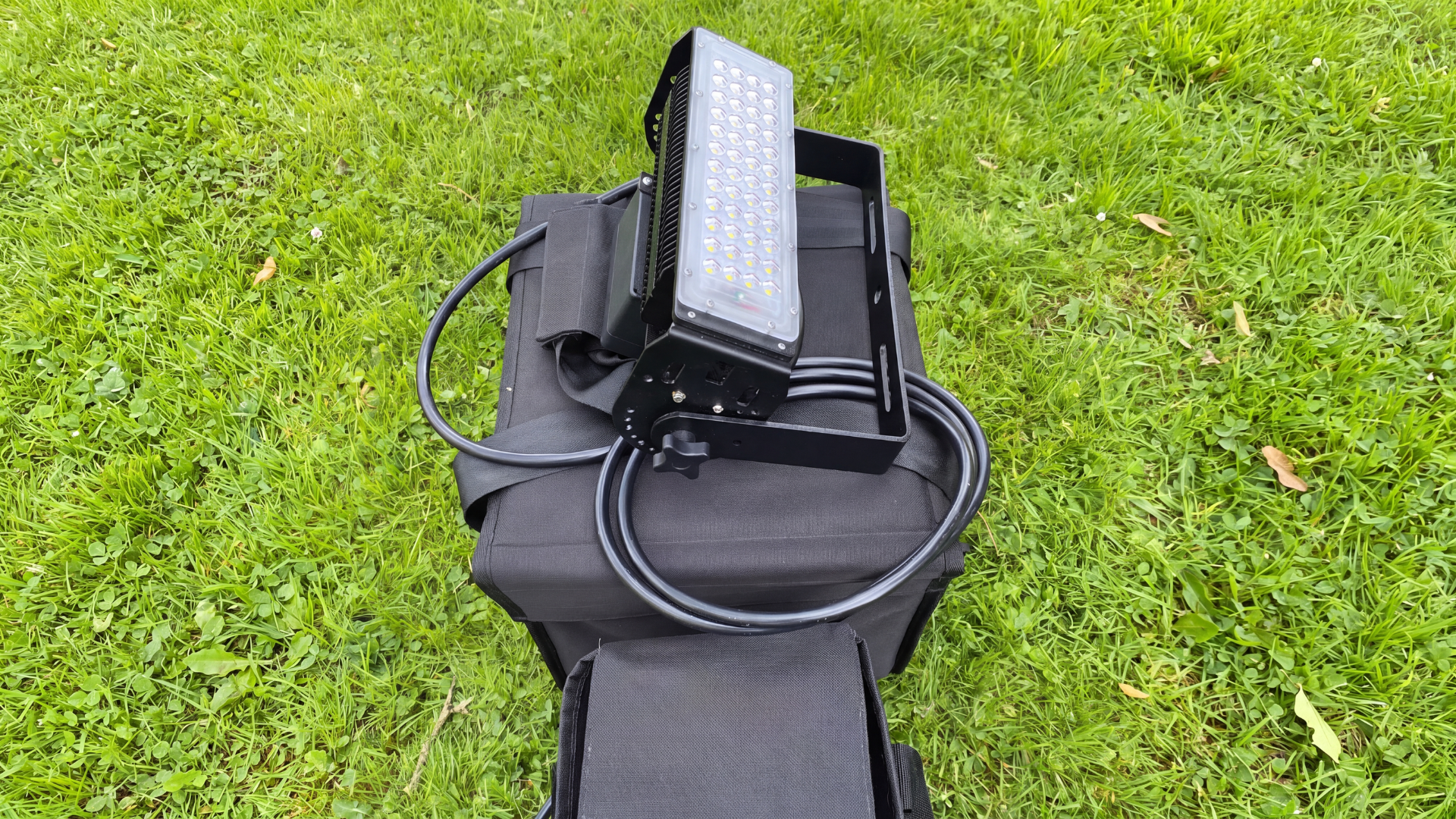

CORE FLOOD 20K Flood Light

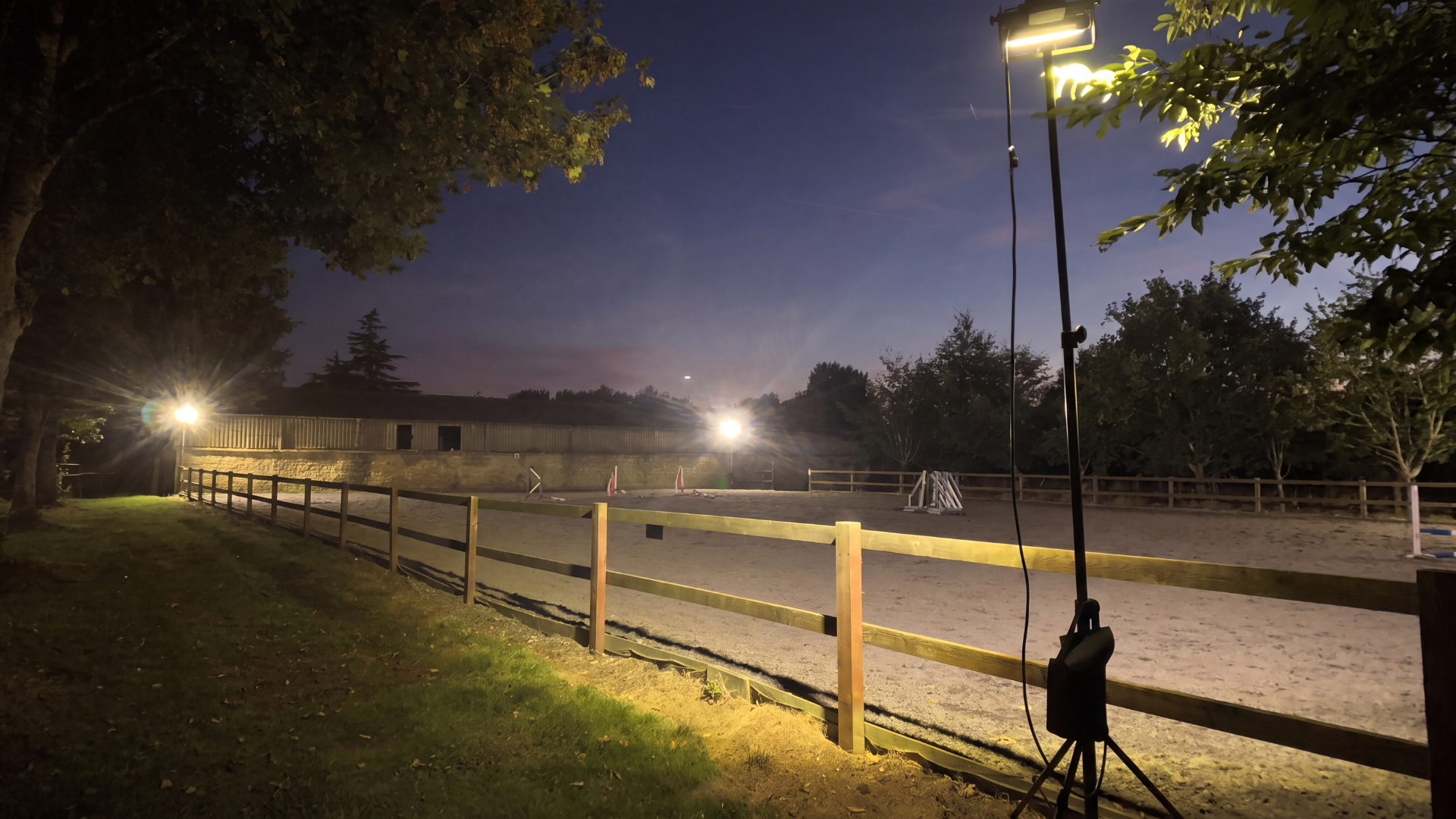

The CORE FLOOD is ideal for fast deployment to quickly light large scenes, areas, car parks, training grounds, arenas and requires no planning permission in most places. Also available with 100-240V input. The head sits on a lightweight tripod (3kg), with a provided ground anchor for windy conditions at 3.5m with options to choose between bespoke battery power for ultimate portability, alternatively 110v or 230V AC input for extended use as an optional accessory.

WHY CHOOSE CORE FLOOD?

No external power, no planning permission needed*, and no noise or light pollution. Very high brightness
means fewer lights are needed than with other similar products, and every unit is IP65 rated, robust and
rugged for the harshest weather conditions

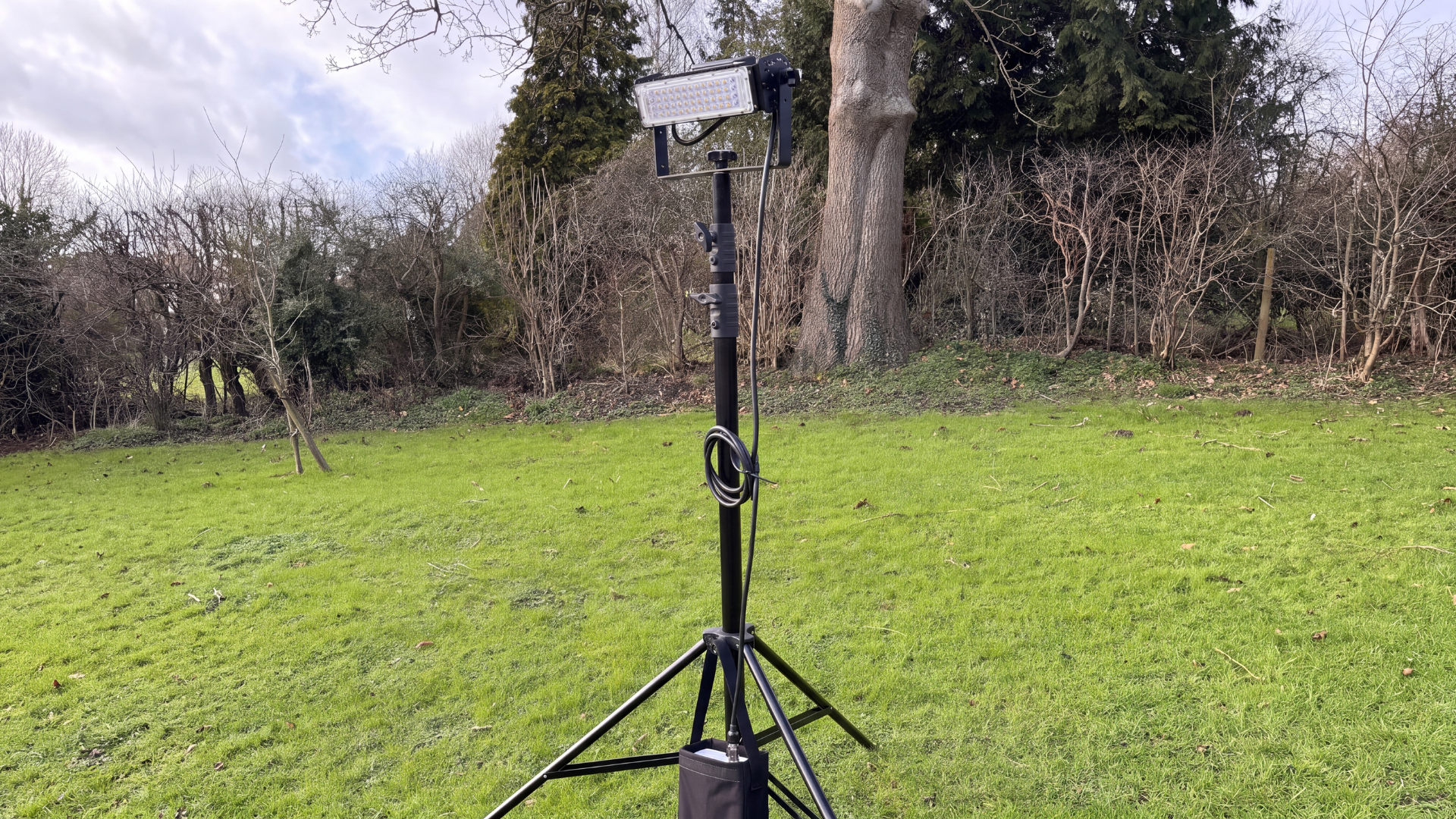

LIGHTWEIGHT AND PORTABLE

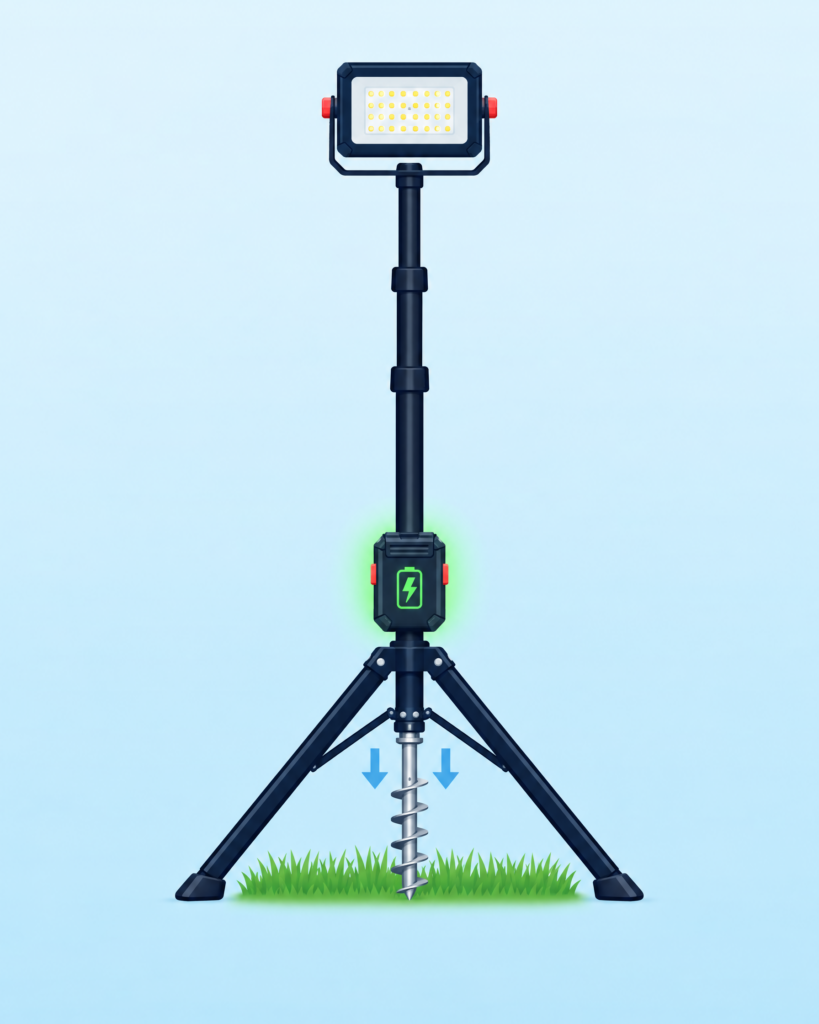

The low battery position improves stability, and the ground screw
secures the tripod firmly on soft
ground

QUICK SETUP ANYWHERE

No planning permission required*. Very fast to deploy, and safe to
take down thanks to the cushioned soft-closing tripod

HIGH, FOCUSED BRIGHTNESS

Throw 20,000 or 24,000 lumens of light directly onto your pitch. Low glare custom optics focus the beam, so
there is no direct light pollution.

34,000 or 41,000 equivalent lumens using calculations used by some other manufacturers

BATTERY POWERED

2 hour or 4 hour versions available, suitable for most evening training sessions. Extend
up to 6 to 13 hours with the powerlevel switch.

CUT YOUR VENUE COSTS

Eliminate the expense of hiring a
floodlit venue. Your own lights, on
your own pitch, whenever you
need them

*In most areas, planning permission will not be required. Some locations, such as conservation areas, may need local approval.

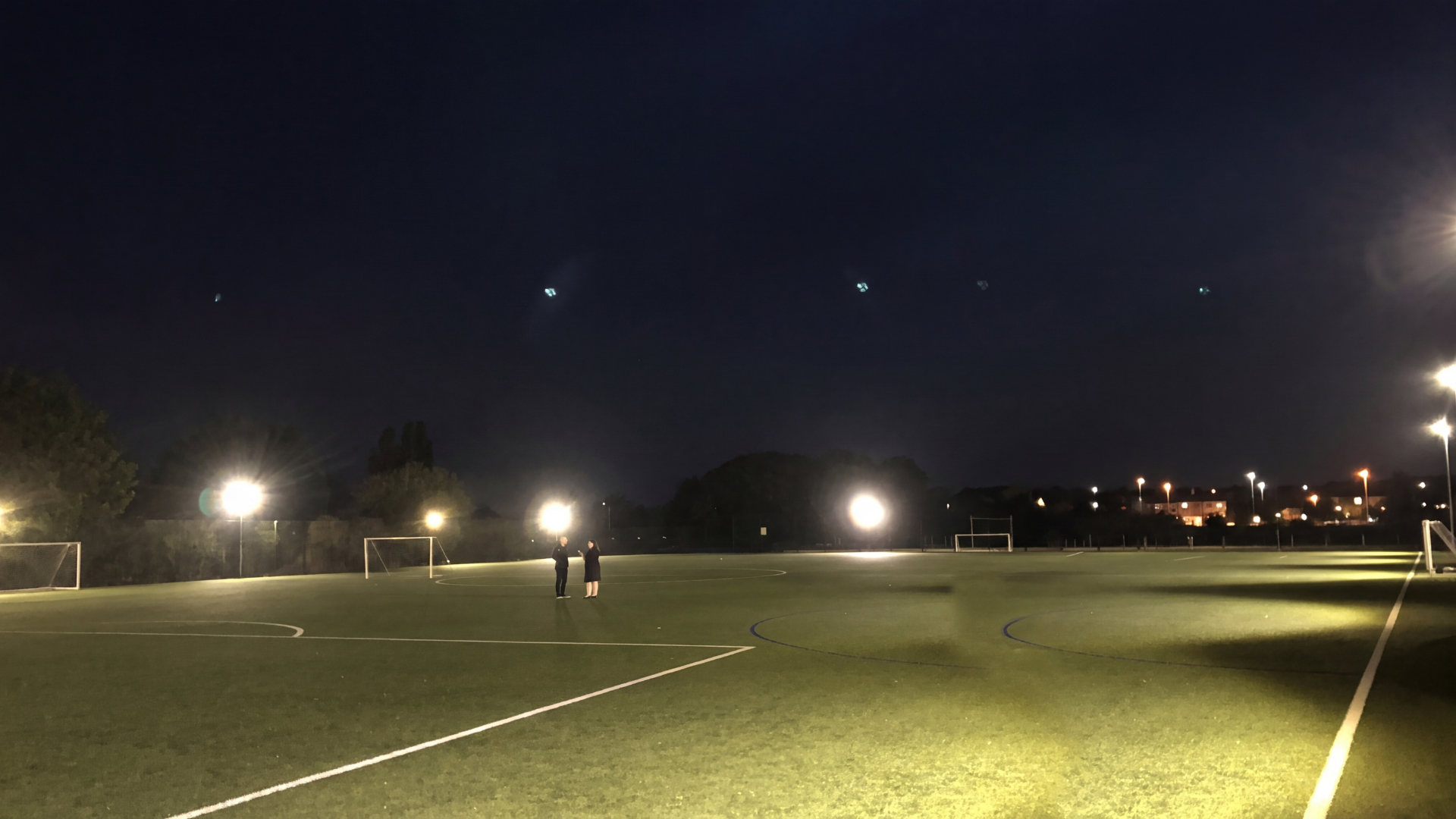

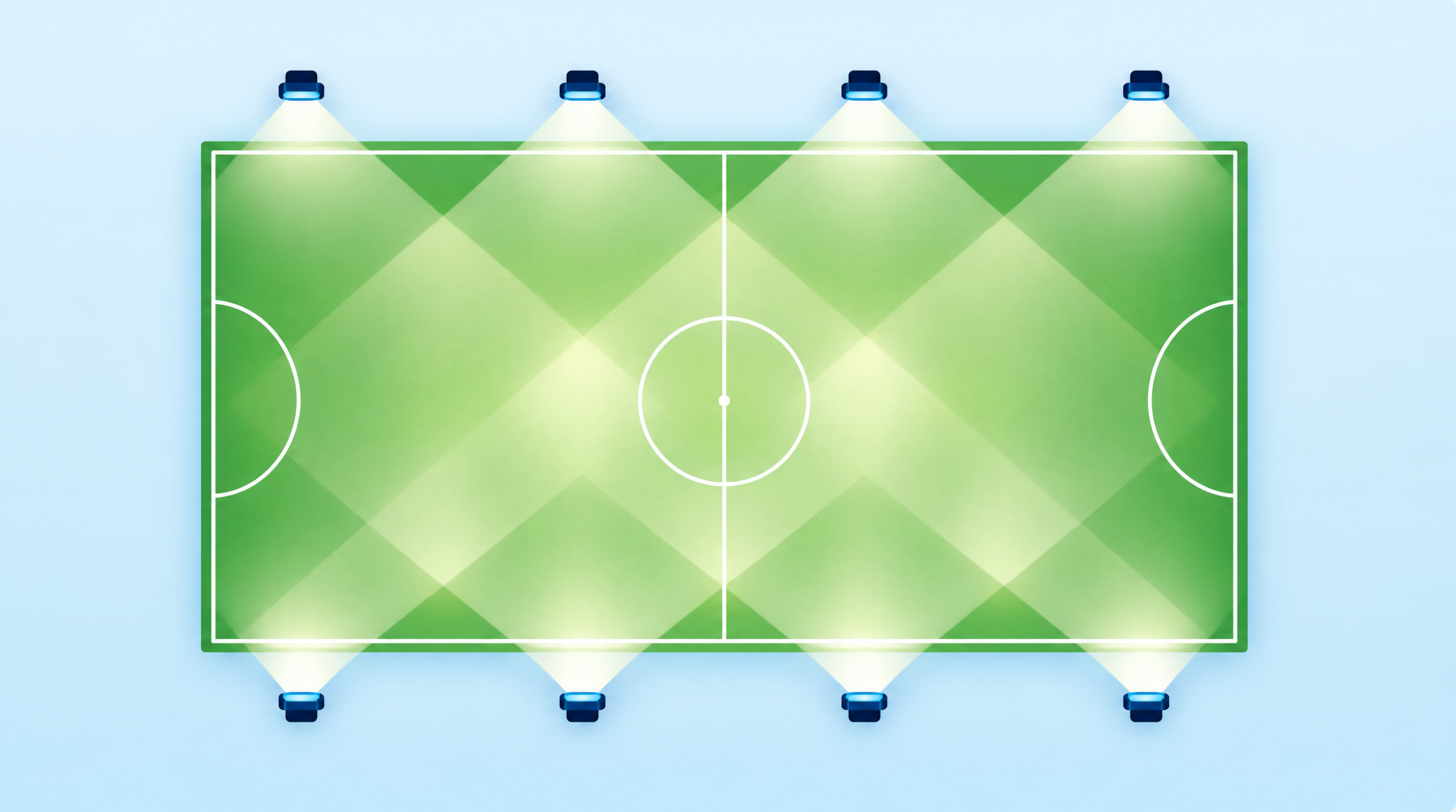

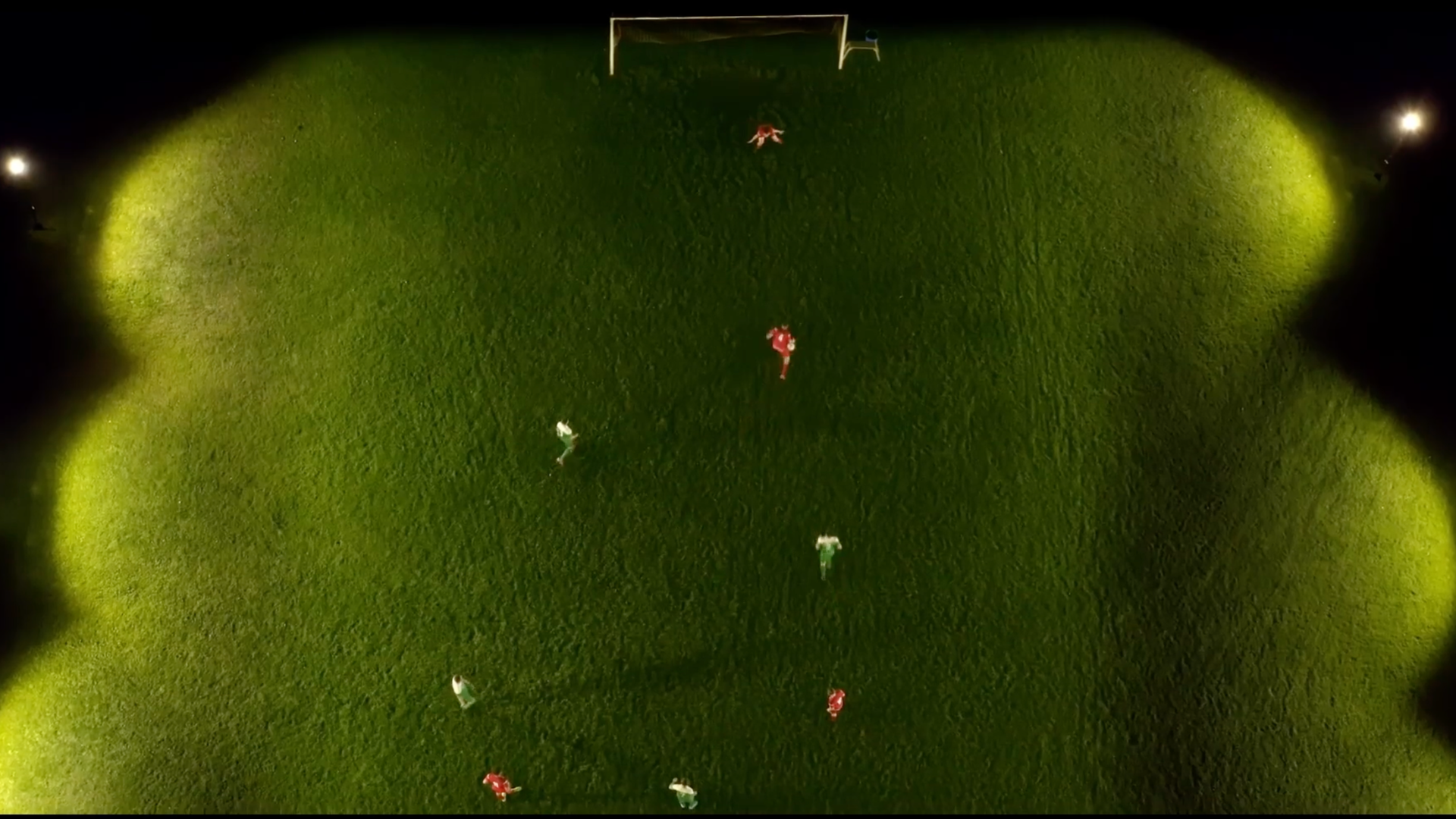

LIGHT SHAPED TO FOCUS

Multiple lights combine to create uniform light levels, especially towards the
centre of the pitch, furthest from the lighting tower. minimising shadows on the field.

We also offer a more powerful CORE FLOOD PRO 24K Flood Light at 24k lumens, as well as a more portable CORE FLOOD BOX Mobile Flood Light.

Designed for instant, temporary floodlighting anywhere. Battery powered with no messy cables, extremely high brightness at 20,000 lumens and rugged outdoor rated design.

Specifications

Light output: 20,000 lumens (24,000 lumens on the PRO)
Light head weight: 3kg

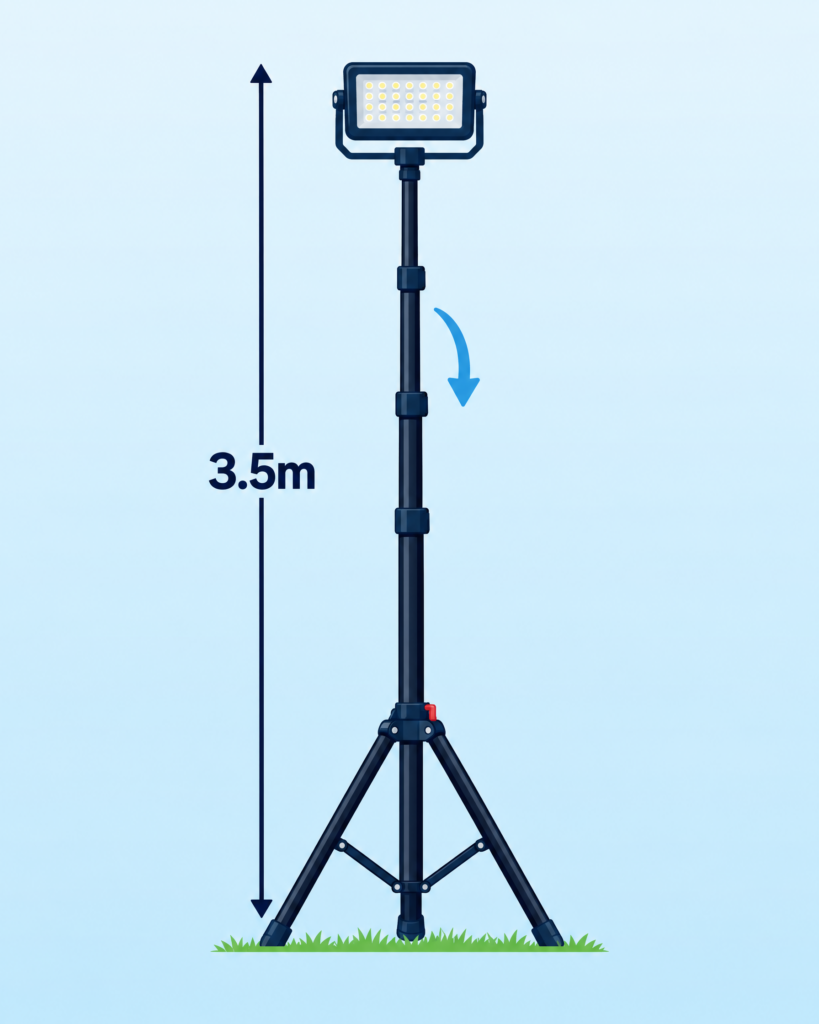

Mounting height: up to 3.5m on the tripod
Weather rating: IP65
Optics: 90-degree polycarbonate collimating lens
Power: lithium-ion battery, with 110V or 230V AC input also available as an optional accessory
Efficiency: uses around 1/7 to 1/10 of the electricity of traditional halogen area lighting

Battery and runtime options

Choose a runtime to suit your sessions. The power level switch trades brightness for longer runtime.

Model	Battery	Full	Medium	Low
20K-26	280Wh	2h 10m	4h	6h
20K-52	560Wh	4h 15m	8h	13h
20K-DUAL	2 x 560Wh	4h 15m	8h	13h
PRO-24K	1,040Wh	7h	14h	22h

Part numbers start COREFLOOD, e.g. COREFLOOD20K-52. The DUAL has two 20,000 lumen heads on one tripod.

Focused optics and "equivalent" lumens

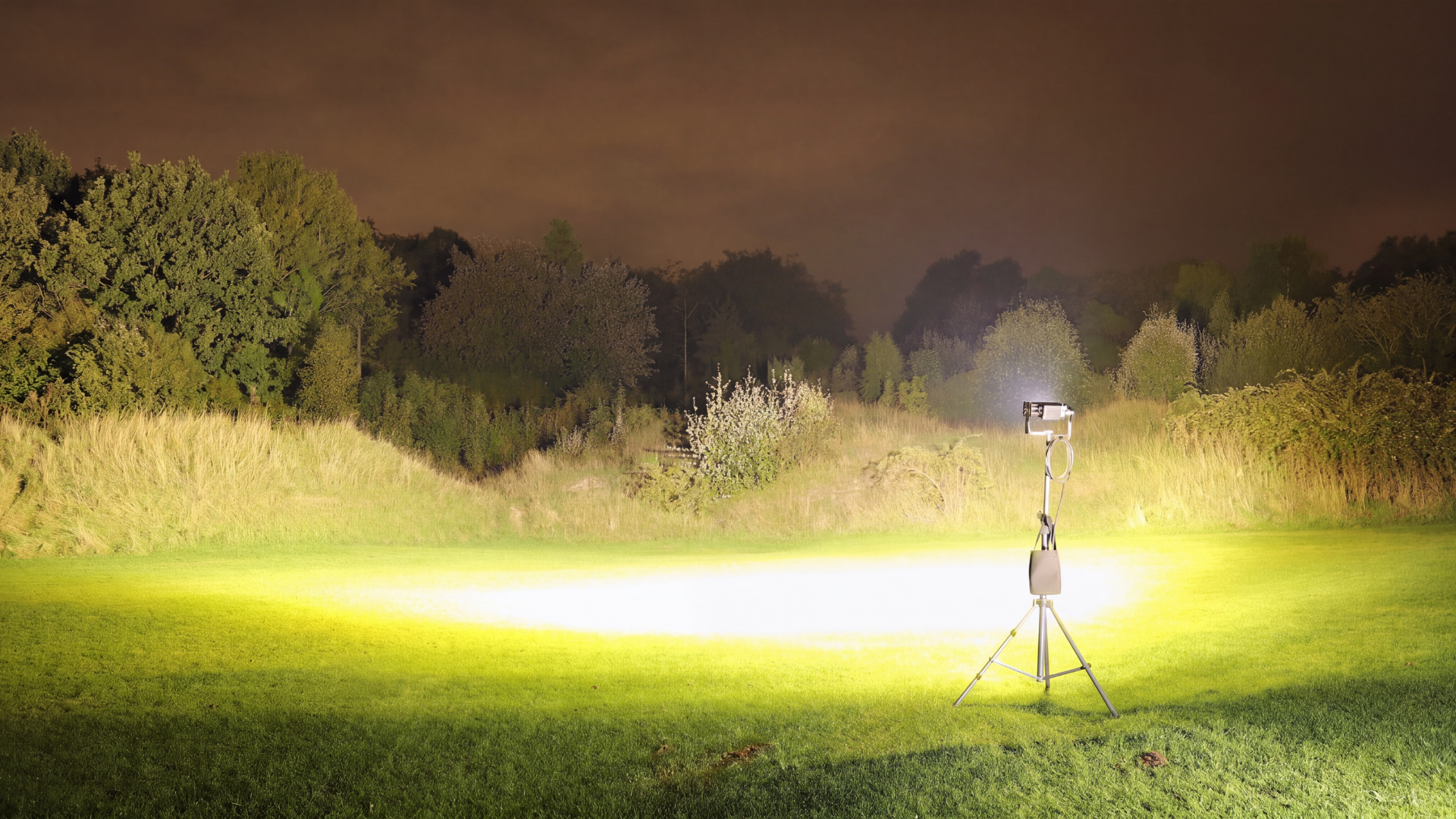

Most floodlights have little or no beam shaping, so light spreads out in a wide arc and much of it lands where nobody is playing (eg into the sky). Our collimating lens concentrates the light into a 90-degree beam aimed at the playing surface, cutting wasted light on the sky and minimising light pollution.

Lumens measure the total light a lamp produces, wherever it ends up. Some manufacturers quote an "equivalent" figure to account for wasted light. By that method, our 20,000 lumen light puts the same lux on the pitch as a 34,000 lumen light with no lens. We quote the real figure first so you can compare like for like.

How many lights do I need?

As a guide, four units light an area of around 50m x 30m (1,500 sqm). The right number depends on the size of the space and the light level you need. Multi-light kits are available in 2, 4, 6, 8, 12 and 16 light configurations.

Tell us what you're lighting and we'll recommend a setup.

What's in the kit

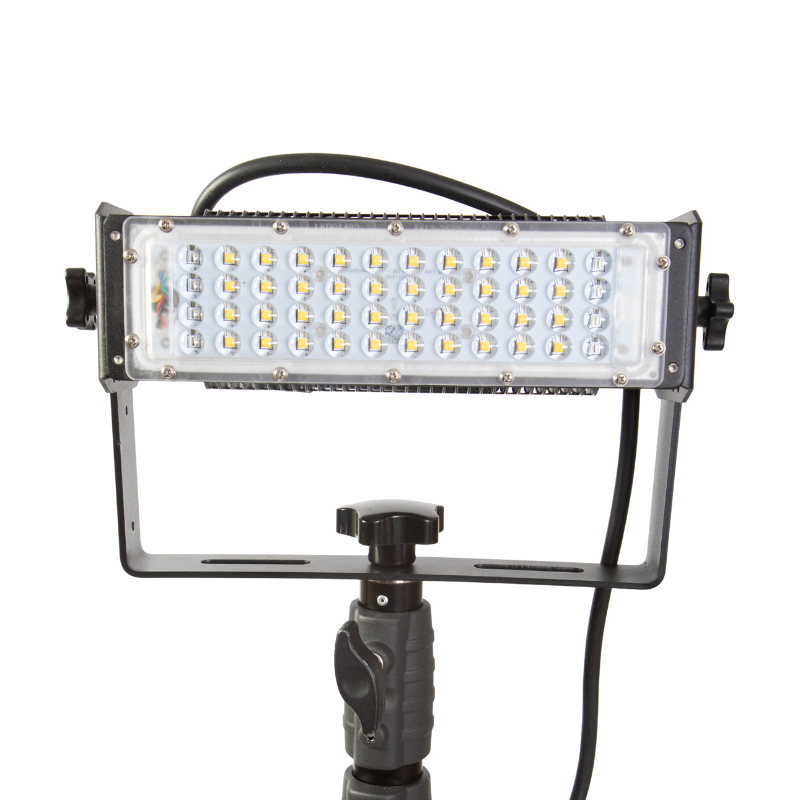

Light head
Battery bag with carry strap
Charger (Medium for 20K versions, Hi-Power for the PRO)
Ground screw to secure the tripod in high winds
Quick start instruction leaflet

Accessories

Tripod bag for transport and storage
Carry bag for the battery, head and charger
Battery chargers in Medium and Hi-Power
Spare ground screws (one comes with every tripod)

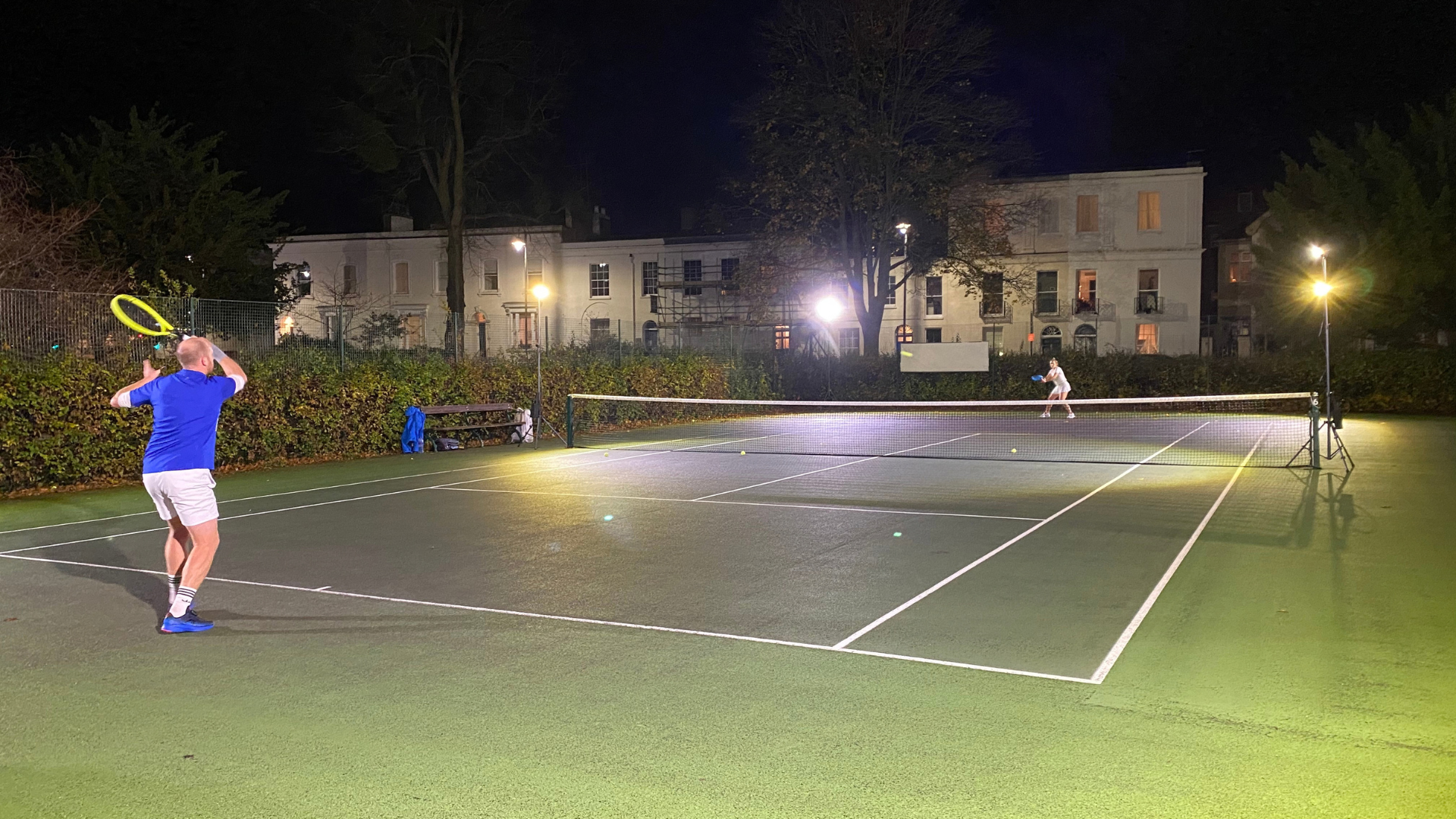

Fencing accessories to mount lights on court and pitch fencing. Contact us to discuss.

Funding grants

Grants and funding are available from various sports bodies, and some cover up to 100% of the cost of the lighting system. Talk to us about the options and the application process.

Made in the UK

CORE Lighting has been designing and manufacturing battery-powered floodlights in the UK for over 14 years, and CORE FLOOD has been in production for 8 years. We have also manufactured this product for other brands under their own names, so you may see the same light elsewhere.

Recent upgrades include robust metal quick-release connectors and an improved tripod system, making it easier to use and even more reliable.
